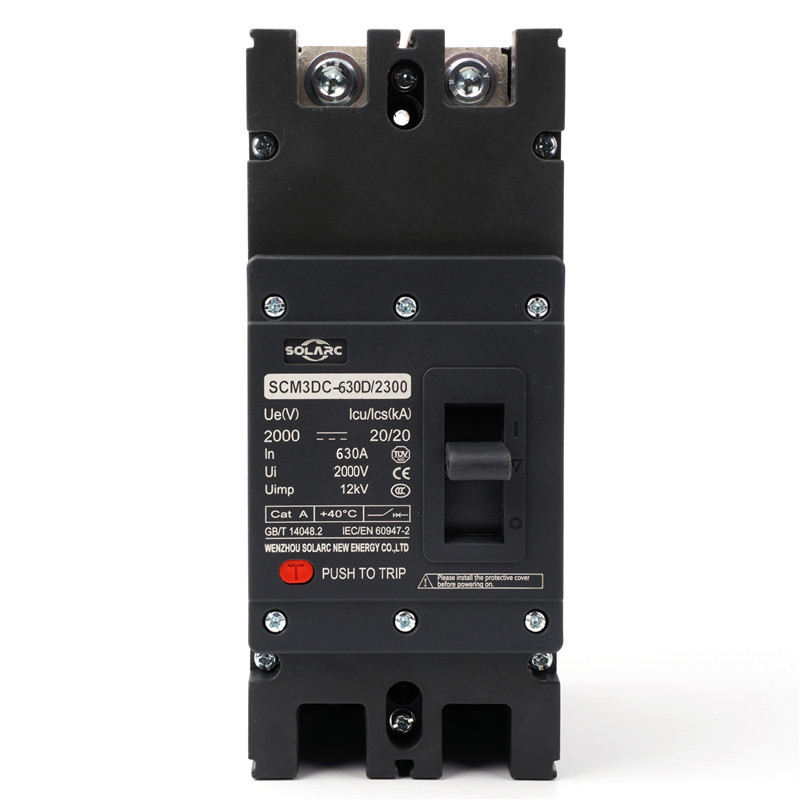

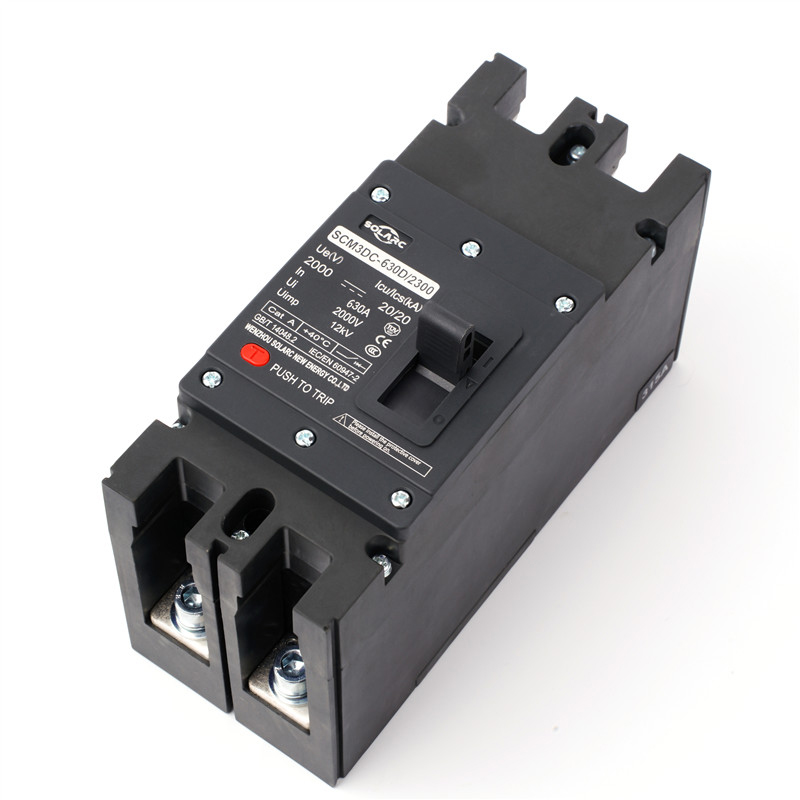

SCM3DC-630D/2300 DC 2000V DC MCCB

Product Consultation

Function

Parameters

Downfile

Advantages/Key Features

1 Superior Performance

The rated working voltage can reach DC2000V, which is compatible with higher voltage distribution systems

2 Safety and Reliability

The dual insulation design is adopted to enhance the product's insulation performance and operational safety

3 User-friendly

The modular installation of accessories effectively reduces the variety of spare parts that customers need to stock

SHELL FRAME		SCM3DC-630D
Number of poles		2
Rated working voltage Ue(V)		DC250/500	DC750/1000	DC1250/1500	DC2000
Rated insulation voltage Ui(V)		DC2000
Rated impulse withstand voltage U(kV)		12
Power-frequency withstand voltage U (1 min) (V)		4000
Rated current In(A)		500,630
Icu(kA)	H	70	40	20	70
	R	80	50	22	80
Ics(kA)		Ics=100%Icu
Mode of connection		Top in bottom out bottom in top out
Use classes		A
Whether it has an isolation function		Yes
Ambient temperature		-35°C~+70°C
Mechanical life (times)		10000
Electrical life (times)		1000
Meet a criterion		IEC/EN 60947-2, GB/T 14048.2
Attachment		Separate excitation, Assistance, Alarm, Manual operation, Electrical Operation
Authentication		CCC, CE, TUV,CB
Dimensions (Length x Width x Height)		275x108x145.5
