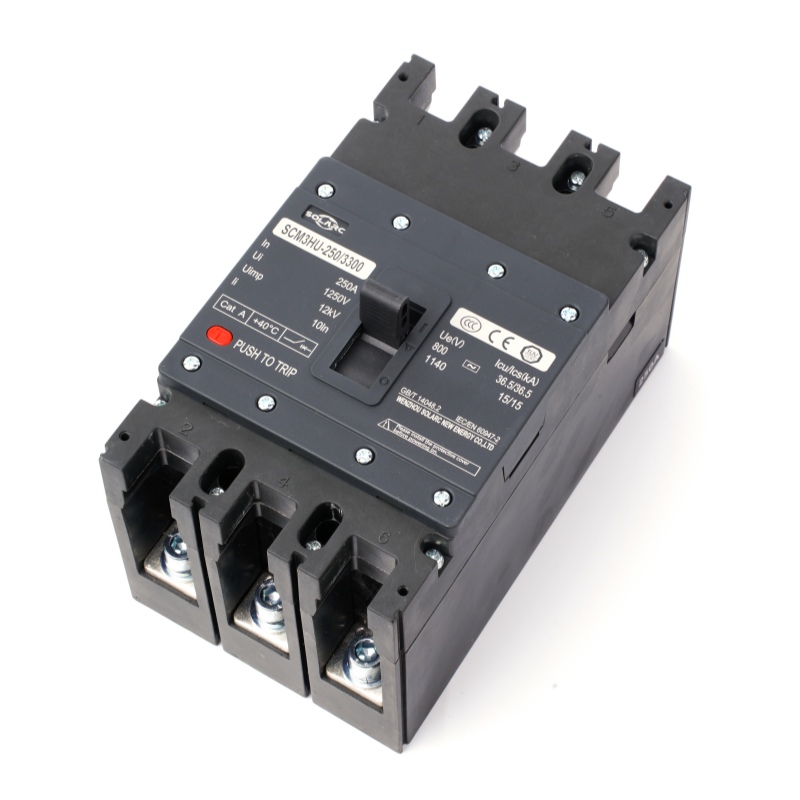

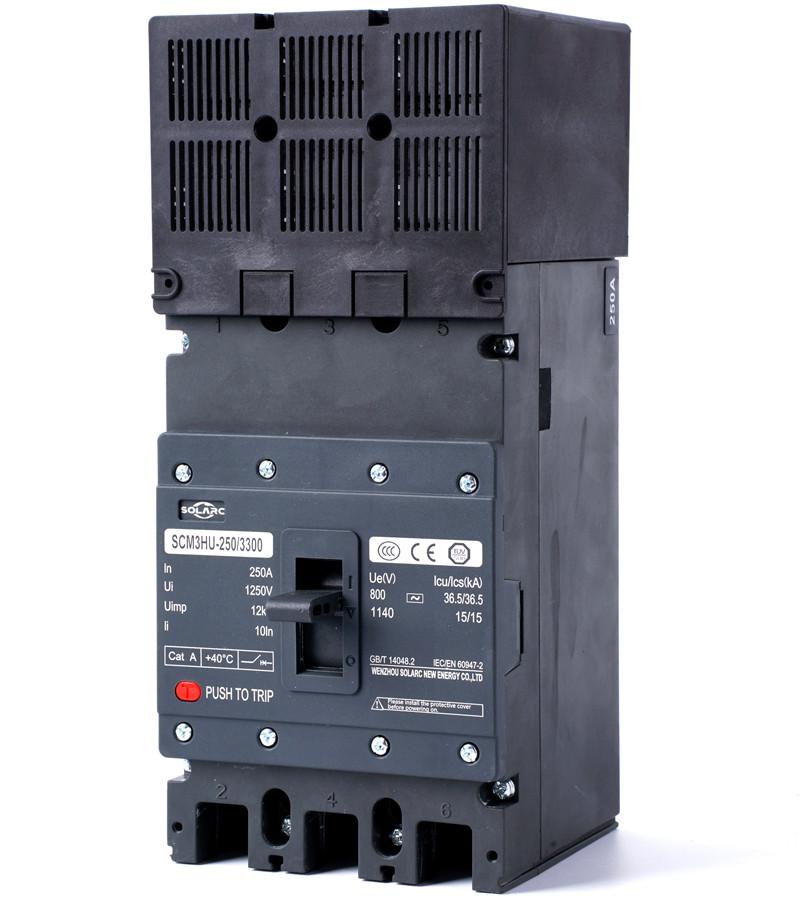

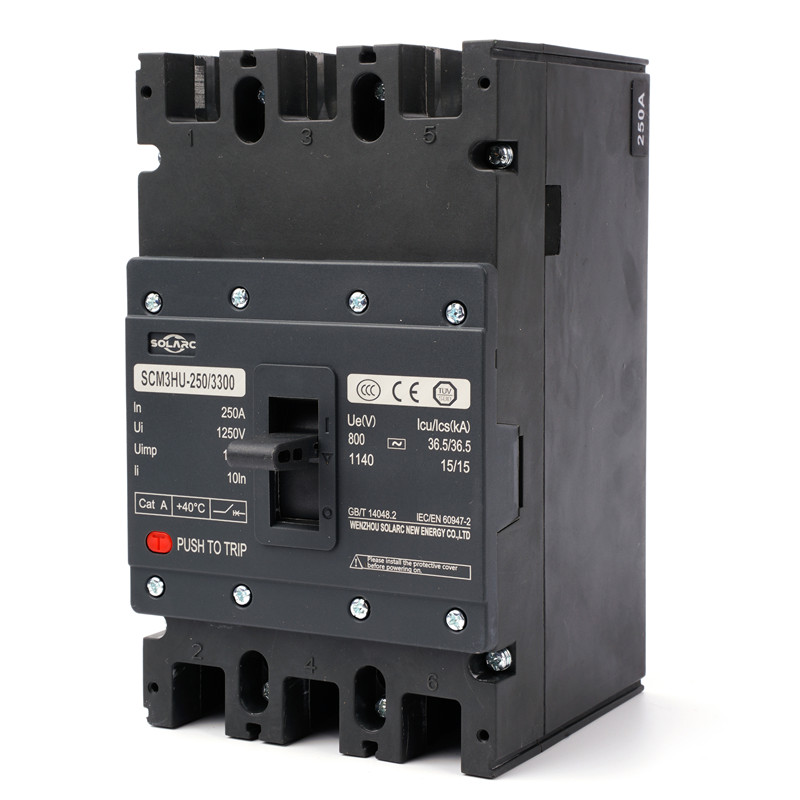

SCM3HU-800/3300 AC1140V AC MCCB

The SC3MHU-800 high-voltage AC molded case circuit breaker is designed for use in AC circuits with a frequency of 50/60Hz and a rated operating voltage up to AC1140V. It is suitable for rated operating currents ranging from 10A to 800A. This circuit breaker is used for making, breaking, and carrying rated currents, and provides reliable protection for circuits and electrical equipment in the event of overload, short circuit, and undervoltage.

  • Rated Operating Voltage (Ue): AC 380V, 415V, 690V, 800V, 1000V, 1140V
  • Rated Operating Current (In): 10A - 800A
  • Rated Insulation Voltage (Ui): 1250V
  • Operational Breaking Capacity: Ics = 100% Icu (AC 800V)
  • Ambient Operating Temperature: -40°C to +70°C

Product Consultation
  • Function
  • Parameters
  • Downfile
    • Advantages/Key Features
    1 Superior Performance
    The rotating double-break design effectively reduces the damage to the circuit caused by large current surges. The innovative new type of rotating shaft design effectively limits the thermal stress generated in the event of a short circuit
    2 Safety and Reliability
    The breaking capacity can reach 100kA, providing ultimate short-circuit protection for the circuit. The zero arc flash design can prevent phase-to-phase short circuits and ensure the safety of the equipment
    3 User-friendly
    A variety of installation and wiring methods make the product's layout and wiring in the cabinet more flexible. The modular design of accessories enables the realization of more protective functions within the same volume
    Shell frame SCM3HU-320 SCM3HU-400
    Number of poles 3 3
    Rated Working voltage Ue(V) AC415 AC500V/690 AC800 AC1000/1140 AC415 AC500V/690 AC800 AC1000/1140
    Rated insulation voltage Ui(V) AC1150
    Rated current In(A) 63, 80, 100, 125, 140, 160, 180, 200, 225, 250, 280, 315, 320 250, 280, 315, 320, 350, 400
     Icu(kA) H 85 50 36.5 10 85 50 36.5 10
    R / / / / 100 50 50 15
    Ics(kA) Ics=100%Icu
    Use class A
    Isolation function Yes
    Ambient temperature -35℃ ~ +70℃
    Mechanical life (times) 2000 1000
    Electrical life (times) 3000 3000 3000 2000 1000 1000 1000 700
    Meet a criterion IEC/EN60947-2, GB/T14048.2
    Attachment Separate excitation, Assistance, Alarm, Manual operation, Electrical Operation
    Certification CCC, CE, TUV
    Dimensions 180×107×126 (3P) 250×182×165 (3P)
    Shell frame SCM3HU-630 SCM3HU-800
    Number of poles 3 3
    Rated Working voltage Ue(V) AC415 AC500V/690 AC800 AC1000/1140 AC415 AC500V/690 AC800 AC1000/1140
    Rated insulation voltage Ui(V) AC1150
    Rated current In(A) 500、630 700、800
    Icu(kA) H 85 50 36.5 10 85 50 36.5 10
    R 100 60 50 15 100 50 50 15
    Ics(kA) Ics=100%Icu
    Use class A
    Isolation function Yes
    Ambient temperature -35℃ ~ +70℃
    Mechanical life (times) 5000 1000
    Electrical life (times) 1000 1000 1000 700 1000 1000 1000 700
    Meet a criterion IEC/EN60947-2, GB/T14048.2
    Attachment Separate excitation, Assistance, Alarm, Manual operation, Electrical Operation
    Certification CCC, CE, TUV
    Dimensions 250X182X165 (3P) 250×182×165 (3P)
    Note: 320 shell frame does not distinguish H: high breaking rate, R flow pattern.
