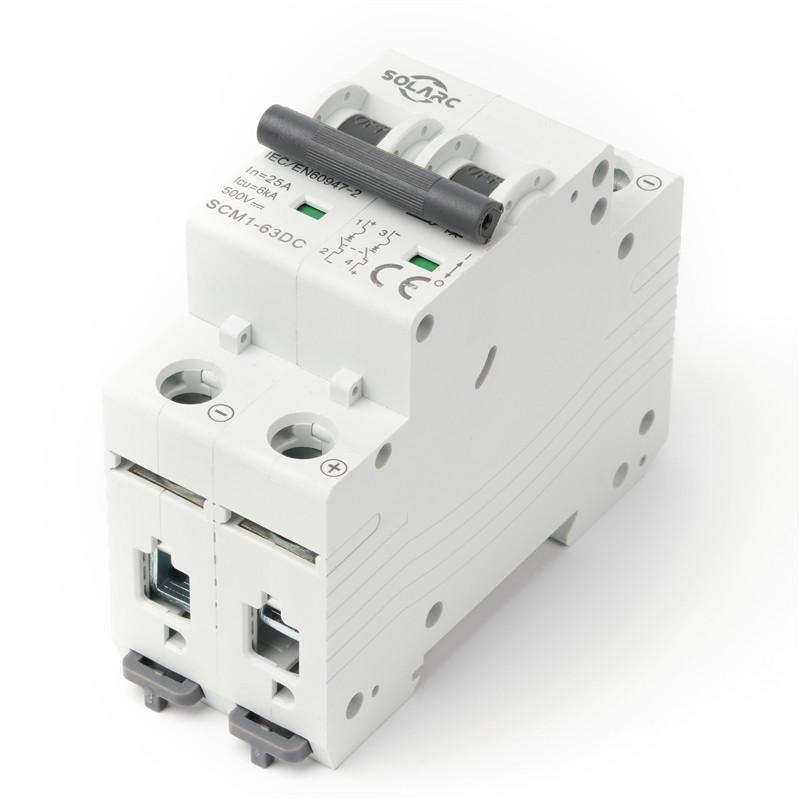

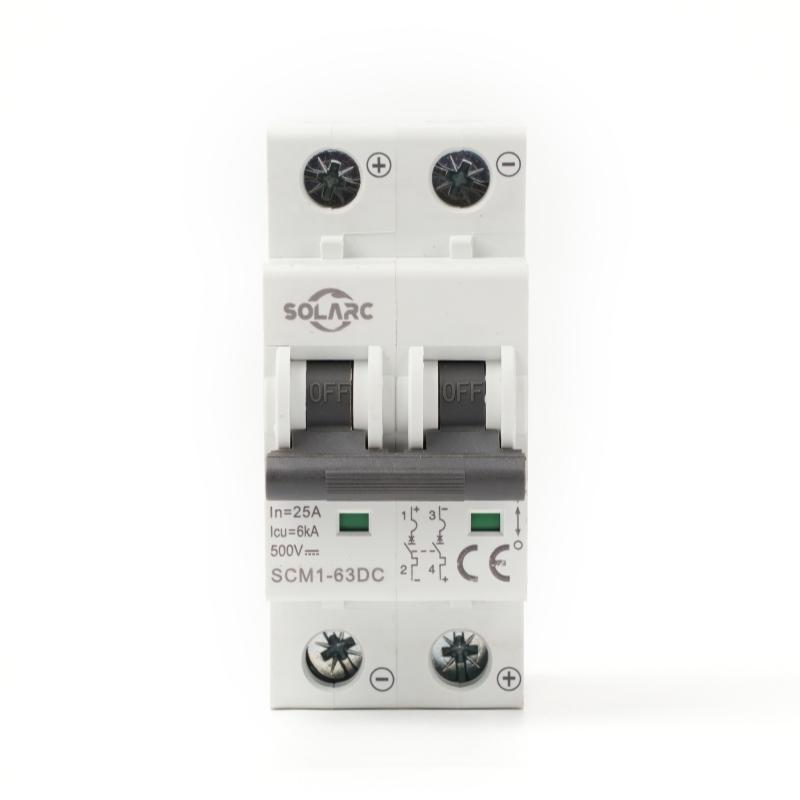

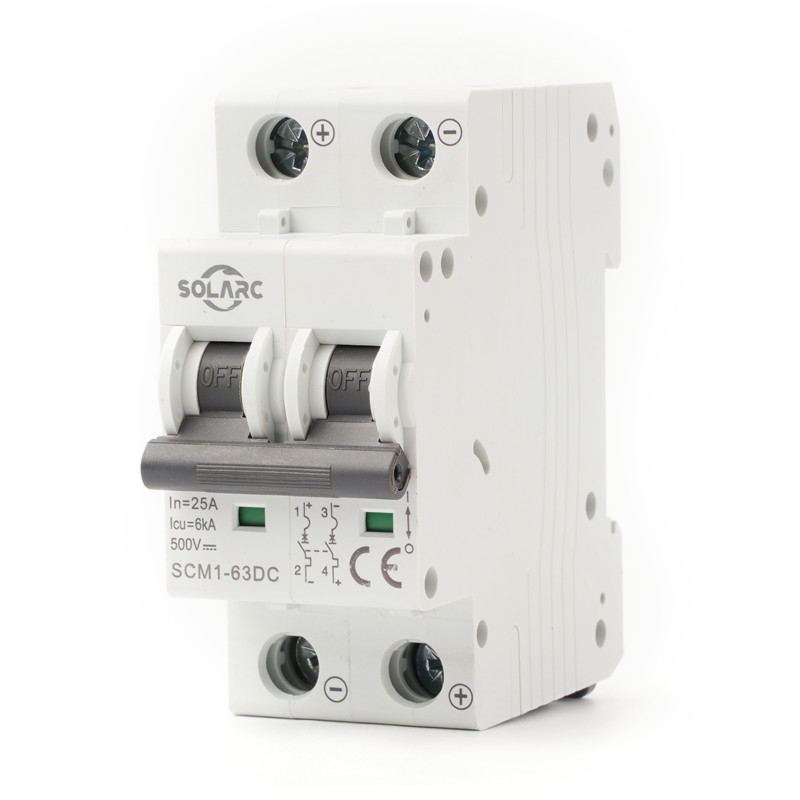

Electrical Characteristics
|
|
Standard
|
IEC60947-2 GB/T14048.2
|
|
Number of poles
|
1p
|
2p
|
3p
|
4p
|
|
Rated operating voltage
|
250V
|
500V
|
750V
|
1000V
|
|
Maximum current of the frame
|
63A
|
|
Rated current
|
6A, 10A, 13A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
|
|
Rated insulation voltage
|
1000VDC
|
|
Rated impulse withstand voltage
|
6kV
|
|
Operational breaking capacity
|
6kA
|
|
Ultimate breaking capacity
|
6kA
|
|
Arcing distance
|
50mm
|
|
Tripping type
|
Thermal-magnetic type
|
|
Service life
|
|
Mechanical life
|
10,000
|
|
Electrical life
|
1,500
|
|
Installation and Environment
|
|
Protection level
|
IP40 on the side, IP20 at the wiring port
|
|
Wiring capacity
|
2.5-25mm²
|
|
Wiring torque
|
2N·m-2.5N·m
|
|
Operating ambient temperature
|
-40°C ~ +80°C
|
|
Storage ambient temperature
|
-40°C ~ +85°C
|
|
Moisture and heat resistance
|
Class 2 (When the humidity is at 55, the relative humidity is 95%)
|
|
Installation and fixation
|
Fixed on a 35mm DIN rail
|
