SCP-21S AC Charging Pile(QQ Style)

The SCP-21S AC charging station is equipped with a high-precision metering module. It is suitable for both residential and commercial use, and can be paired with a network communication module to connect to a management platform based on the Open Charge Point Protocol (OCPP). It supports plug-and-charge, scheduled charging, card swiping, QR code scanning, Bluetooth connection, Wi-Fi connection, and 4G connection for charging initiation. The charging station integrates various protective function.

  • Power Supply Conditions: 220V/380±20%, frequency 50Hz/60Hz.
  • Output Power: Offers multiple power options including 30kW, 60kW, 90kW, and 120kW.
  • Communication Methods: Equipped with 485, 232, and CAN communication interfaces, supporting various communication protocols.
  • Communication Functions: Supports four types of network connections: Ethernet, 4G, Bluetooth, and Wi-Fi, with backend communication capabilities. It allows remote monitoring of the main control board through the backend and supports the OCPP1.6 protocol.
  • Activation Methods: Supports multiple activation methods including VIN code red dot, card swiping, QR code scanning, and scheduled charging.
  • Protection Level: Achieves an IP54 rating, offering good waterproof and dustproof performance.
  • Environmental Conditions: Adapts to a temperature range of -40℃ to 85℃, relative humidity of 5% to 95%, and an altitude of ≤2000m.
Product Consultation
  • Function
  • Parameters
  • Downfile
    • Advantages/Key Features
    1 Strong applicability
    The protection level reaches IP54, with dust-proof, waterproof and other functions, suitable for temperature range of -20 ℃~60 ℃, relative humidity of 5%~95%, altitude ≤ 2000m
    2 Remote monitoring
    Supports four networking methods: Ethernet, 4G, Bluetooth, and WiFi. It has backend communication function and can remotely monitor the main control board through the backend. It also supports OCPP1.6 protocol
    3 Power optional
    Provide multiple power options such as 3.5kW, 7kW, 11kW, 22kW, etc
    Model SCPS-7S SCPS-11S SCPS-21S
    Electrical Parameters
    Rated Voltage 220VAC+10% 380VAC±10% 380VAC+10%
    Frequency 50Hz/60Hz
    Input Current 0~16A 0~16A 0~32A
    Rated Power 7KW 11KW 21KW
    External Meter Interface Supported Rs485 Communication Protocol
    Leakage Detection Optional Type A+DC6mA
    Network Communication Interface Optional,Ethernet/4G/Bluetooth/wifi
    General Parameters
    Style and Color JK Style/White/Red/Silver/Blue Gray/Gray/Lake Green
    Enclosure Material PC
    Dimensions(W*H*D) 200*300*120mm
    Protection Level IP65
    Operating Temperature/Humidity Temperature: -20°C ~ +60°C, Humidity: 0-95%
    Altitude ≤2000m

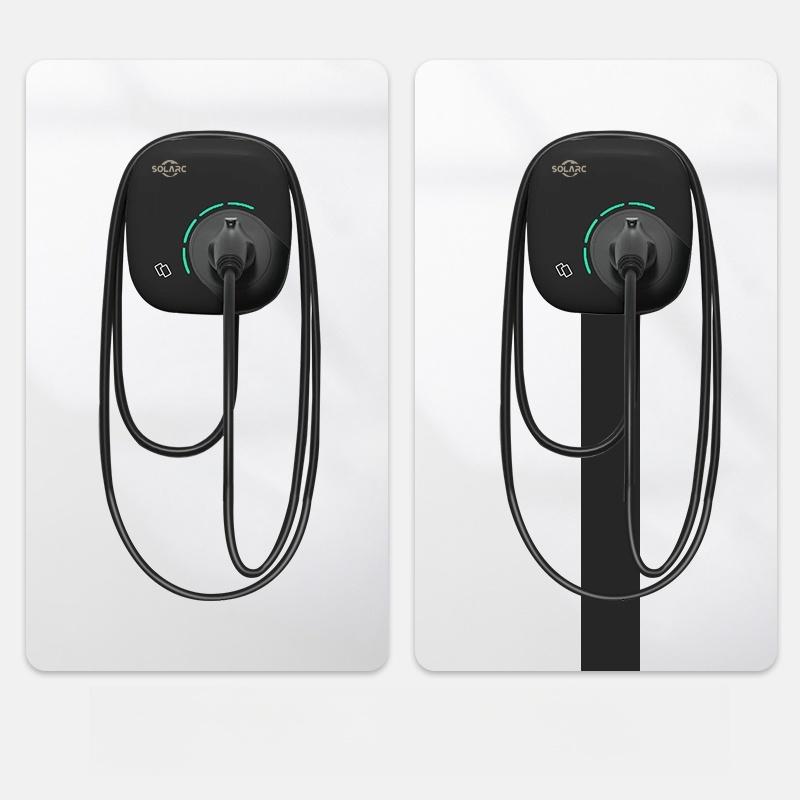

    Mounting Method Wall-Mounted/Floor Stand
