XL-21 Power Distribution Cabinet

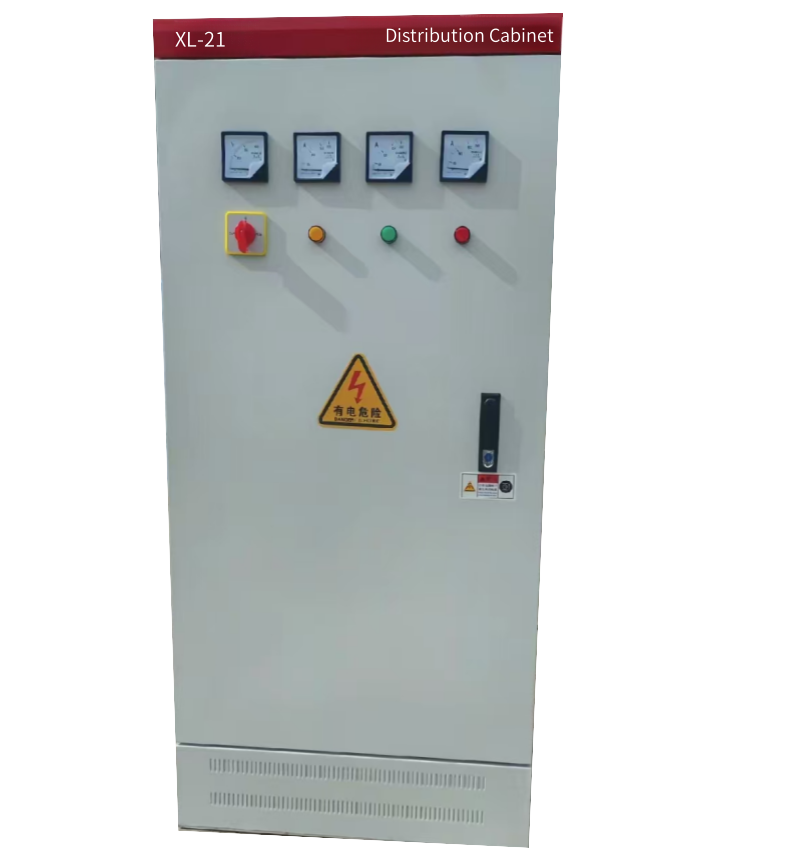

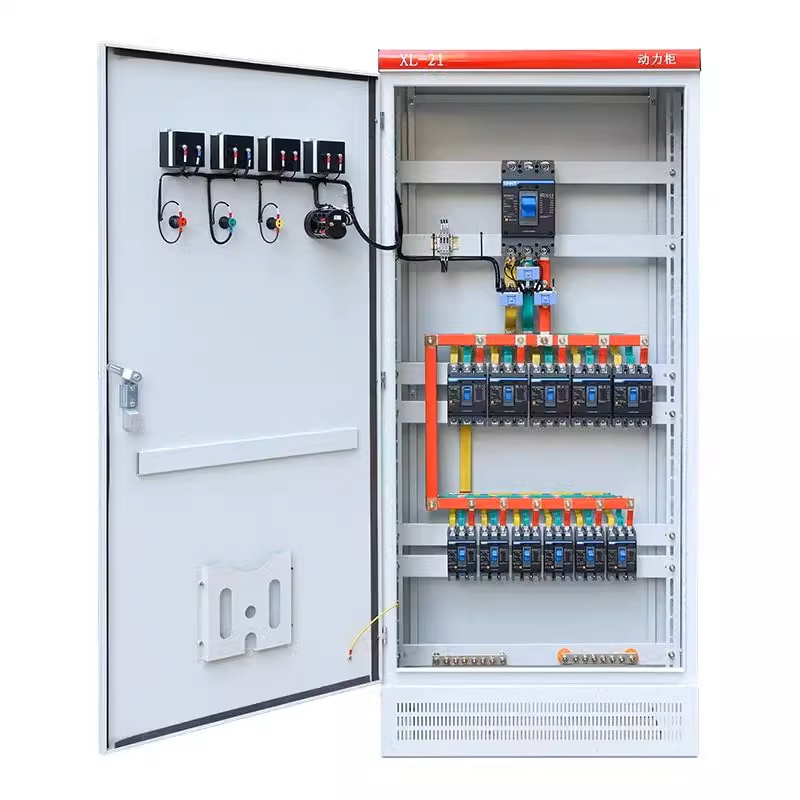

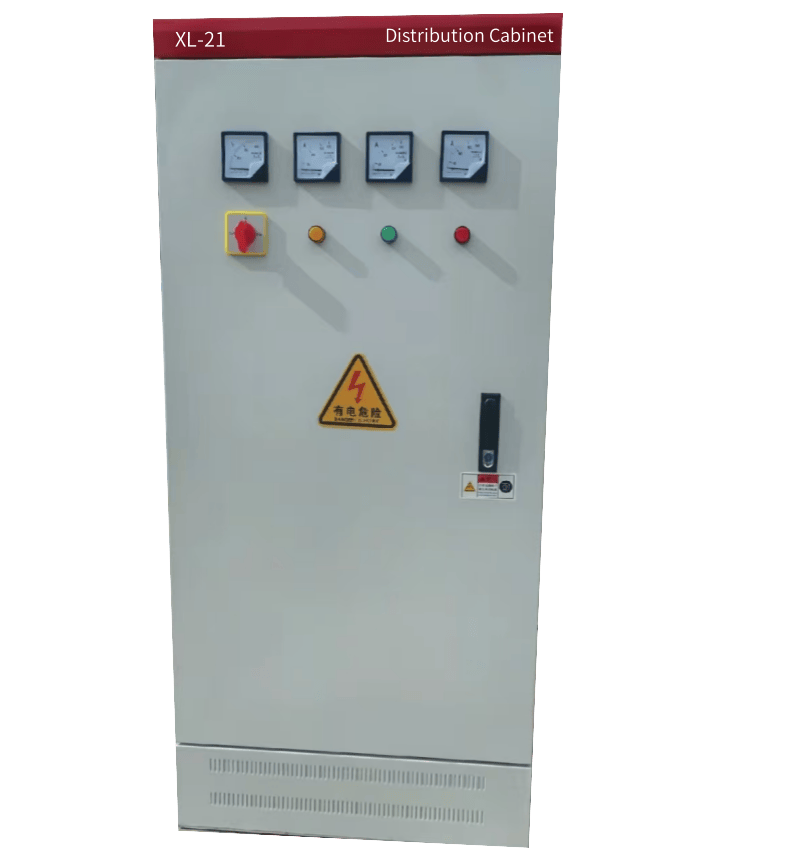

The XL-21 power distribution cabinet is used in power plants and industrial and mining enterprises, serving as a power or lighting distribution unit in three-phase AC systems with voltages below 500V, including three-phase three-wire, three-phase four-wire, and three-phase five-wire configurations. The system is wall-mounted, with front operation and inspection capabilities. The cabinet is fully enclosed, assembled from C-shaped or 8MF profile materials. It features a new type of rotating arc-extinguishing switch that can handle load operations. On the front panel, there are voltage and current indicators, as well as signal lights.

  • Function Integration:The power distribution cabinet integrates the introduction, distribution, and control of power supply within a single enclosure, facilitating management and maintenance.
  • High Protection Level:Typically features a high degree of protection (such as IP40 or higher), which prevents the ingress of dust, foreign objects, and accidental contact with live parts.
  • Overload and Short Circuit Protection:Equipped with protective devices such as circuit breakers and fuses, effectively preventing overload and short circuit faults, safeguarding equipment and personnel safety.
  • High-Quality Components:Utilizes high-quality electrical components, such as circuit breakers, contactors, and relays, ensuring reliable operation of the equipment.
  • Intuitive Interface: Equipped with indicator lights, meters, and operation buttons, allowing operators to intuitively understand the equipment status and perform operations.
  • Ease of Maintenance:Modular design facilitates quick replacement and maintenance of faulty components.
  • Variety of Specifications:Offers a range of specifications and configurations of power distribution cabinets to meet different load requirements.
  • Monitoring Functions:Some power distribution cabinets are equipped with intelligent monitoring systems capable of real-time monitoring of parameters such as current, voltage, and power.uttons, and conversion switches, which are the main control components.
Product Consultation
  • Function
  • Parameters
  • Downfile
    • Advantages/Key Features
    1 Superior Performance
    The introduction, distribution, and control of the power supply are all concentrated in a single cabinet, which facilitates management and maintenance. High-qualityelectrical components, such as circuit breakers, contactors, and relays, are used to ensurre the reliable operation of the equipment
    2 High Protection Rating
    It has a high protection ratingsuch ( as IP40 or higher), which carprevent dust, foreign objects, and accidental contact with live parts
    3 Intelligent Monitoring
    An intelligent monitoring system can be equipped according tocustomer requirements, which can monitor parameters such as current, voltage, and power in reeal time
    Model XL-21
    Electrical Parameters
    Rated Voltage 400VAC/690VAC
    Insulation Voltage 1000VAC
    Frequency 50Hz/60Hz
    Max Number of Input Circuits 4 10 6
    Rated Current 100A/125A 50A/63A 100A/125A
    Max Number of Output Circuits 1 1 1
    Max Switch Output Current 500A 630A 800A
    Surge Protective Device T2/T1+2, In=20kA, Imax=40kA
    General Parameters
    Enclosure Material SPCC/SS
    Dimensions (W×H×D) 800*1800*400mm
    Protection Level IP30
    Operating Temperature/Humidity Temperature: -20°C ~ +60°C, Humidity: 0-95%
    Altitude ≤2000m
    Mounting Method Floor Stand
