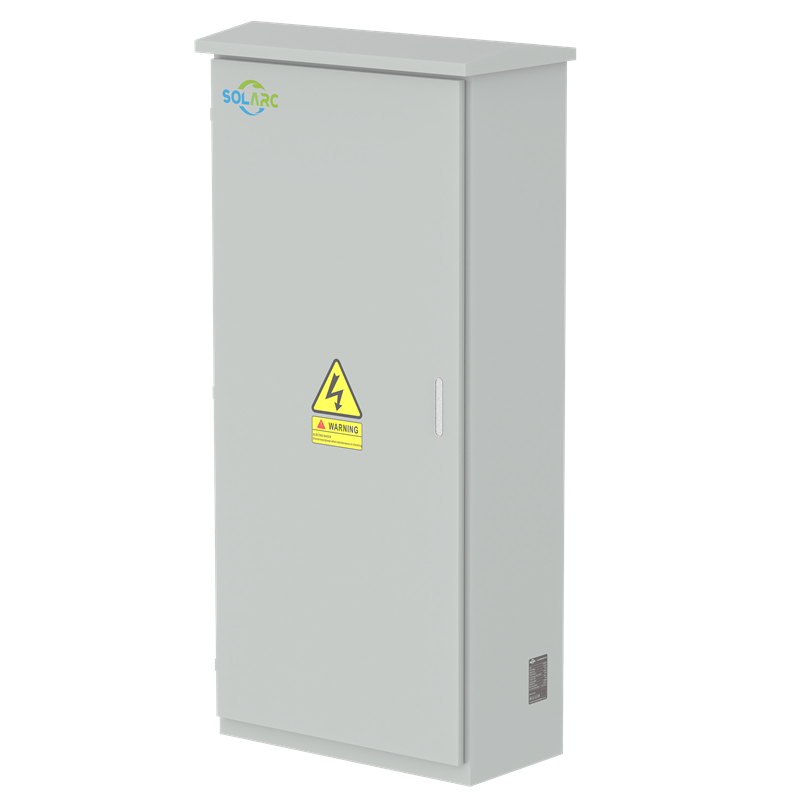

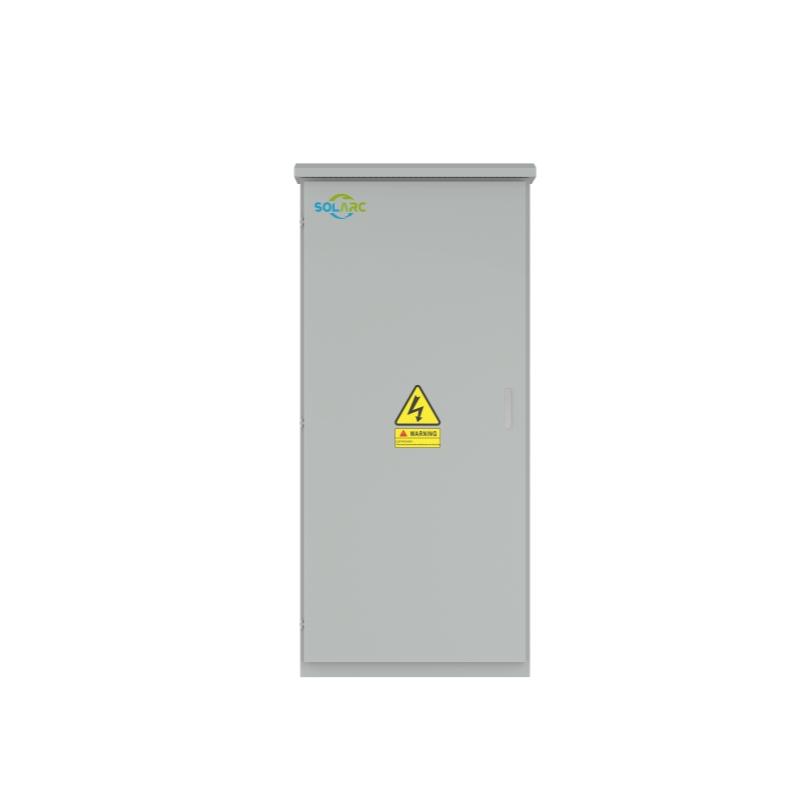

SCDB-3/1 AC Distribution Cabinet

The SCDB PV AC Distribution Cabinet is an essential component in photovoltaic (PV) string inverter power generation systems, designed to provide power protection between string inverters and AC distribution cabinets or step-up transformers. By consolidating the output currents from multiple inverters, this device simplifies the wiring between string inverters and step-up transformers, thereby enhancing system reliability and facilitating maintenance.

  • High Protection Rating: The cabinet achieves an IP65 protection rating, offering protection against water ingress, dust, ultraviolet radiation, and salt fog corrosion, thus meeting the requirements for outdoor installation.

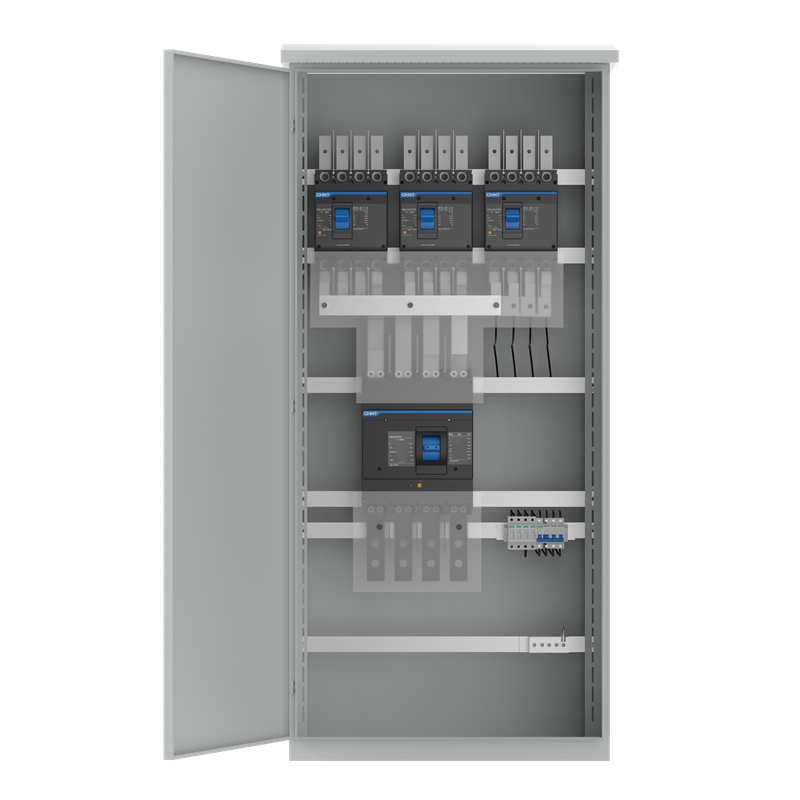

  • Multiple Input Channels: It can simultaneously connect to multiple outputs from string inverters, with each input line protected by a thermal-magnetic circuit breaker, and the rated voltage reaching up to AC 1140V.
  • Intelligent Monitoring: Equipped with an integrated meter for data acquisition, it enables local or remote data monitoring via the RS485/ModBus-RTU communication protocol.
  • High-Voltage Lightning Protection: It is fitted with a dedicated high-voltage surge arrester to provide overvoltage and lightning protection between three phases, with a working voltage of above AC 1140V.
Product Consultation
  • Function
  • Parameters
  • Downfile
    • Advantages/Key Features
    1 High Protection Rating
    The protection rating reaches IP65, which provides waterproof, duustproof, UV-resistant, and salt fog corrosion-resistant functions, meeting the requirements for outdoor installation
    2 Intelligent Monitoring
    The built-in energy meter can achieve local or remote data monittoring through the RS485/ModBus-RTU communication protocol
    3 Flexible Customization
    The enclosure material, size, and other functions can be custonhized according to customer requirements
    Model SCDT-2/1 SCDT-4/1 SCDT-6/1
    Electrical Parameters
    Rated Voltage 230VAC/400VAC/600VAC/690VAC/800VAC/1140VAC
    Insulation Voltage 1140VAC
    Frequency 50Hz/60Hz
    Max Number of Input Circuits 2 4 6
    Rated Current 80A/125A 125A/160A 160A/250A
    Max Number of Output Circuits 1 1 1
    Max Switch Output Current 250A 630A 1600A
    Surge Protective Device T2/T1+2, In=20kA, Imax=40kA
    General Parameters
    Enclosure Material SPCC/SS
    Dimensions (W×H×D) 400×600×200mm 800×1600×400mm 800×2000×800mm
    Protection Level IP65
    Operating Temperature/Humidity Temperature: -20°C ~ +60°C, Humidity: 0-95%
    Altitude ≤2000m
    Mounting Method Wall-Mounted/Floor Stand
